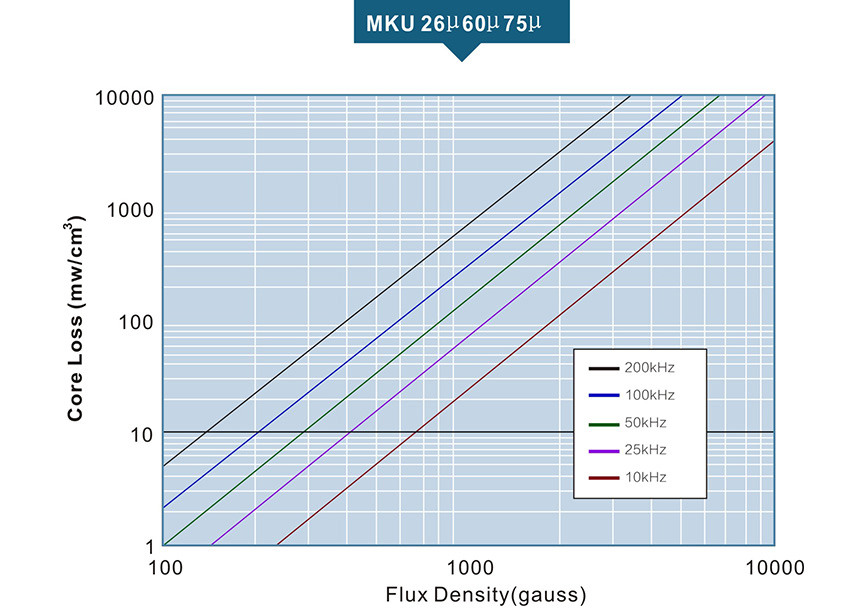

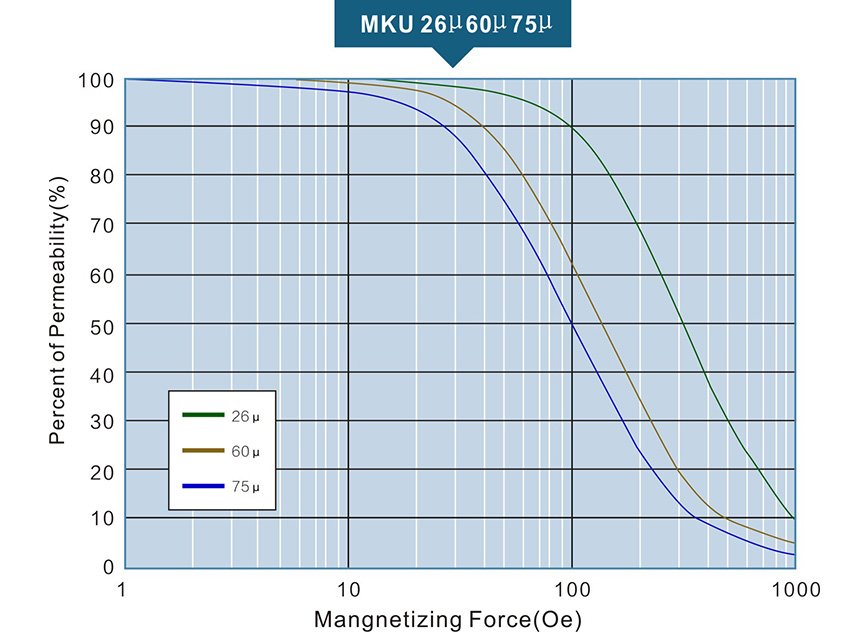

MKU series is a new alloy powder series through Mirrack's own innovation. It's prominently characterized itself with superior low loss, while maintaining a very good DC bias performance. What's more, it's much more cost-effective than Fe-Si powder (compatible to Magnetics XFlus, CSC Mega Flus, Arnold Fluxsan) and Super Sendust powder (compatible to Magnetics Kool Mu Max, Arnold SH series).

It's widely applied to flyback transformer, resonant inductor, power factor correction choke / boost (PFC choke / PFC boost) for UPS, inverter air conditioner, industrial power supply, solar / PV inverter as well as electric vehicle, etc.

● Excellence in cost-effectiveness

Mirrack Part No.	Before Coating						After Coating						Electromagnetic Property		Inch Reference No.	Specification download
	OD(MAX)		ID(MIN)		HT(MAX)		OD(MAX)		ID(MIN)		HT(MAX)		Perm.	AL
	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	[μ]	nH/ N2 (+/-8%)
MKU270-026	1.060	26.90	0.580	14.70	0.440	11.20	1.090	27.70	0.555	14.10	0.472	11.99	26	32	106026	download
MKU270-060	1.060	26.90	0.580	14.70	0.440	11.20	1.090	27.70	0.555	14.10	0.472	11.99	60	75	106060	download
MKU270-075	1.060	26.90	0.580	14.70	0.440	11.20	1.090	27.70	0.555	14.10	0.472	11.99	75	94	106075	download
MKU270H-026	1.060	26.90	0.580	14.70	0.340	8.64	1.090	27.70	0.555	14.10	0.372	9.45	26	22	107026	download
MKU270H-060	1.060	26.90	0.580	14.70	0.340	8.64	1.090	27.70	0.555	14.10	0.372	9.45	60	59	107060	download
MKU270H-075	1.060	26.90	0.580	14.70	0.340	8.64	1.090	27.70	0.555	14.10	0.372	9.45	75	74	107075	download
MKU310-060	1.220	31.00	0.598	15.30	0.394	10.00	1.260	32.00	0.571	14.50	0.433	11	60	88	122060	download
MKU330-026	1.300	33.00	0.785	19.90	0.420	10.70	1.332	33.83	0.760	19.30	0.457	11.61	26	28	130026	download
MKU330-060	1.300	33.00	0.785	19.90	0.420	10.70	1.332	33.83	0.760	19.30	0.457	11.61	60	61	130060	download
MKU330-075	1.300	33.00	0.785	19.90	0.420	10.70	1.332	33.83	0.760	19.30	0.457	11.61	75	76	130075	download
MKU330H-026	1.300	33.00	0.785	19.90	0.345	8.76	1.332	33.83	0.760	19.30	0.382	9.70	26	22	131026	download
MKU330H-060	1.300	33.00	0.785	19.90	0.345	8.76	1.332	33.83	0.760	19.30	0.382	9.70	60	51	131060	download
MKU330H-075	1.300	33.00	0.785	19.90	0.345	8.76	1.332	33.83	0.760	19.30	0.382	9.70	75	64	131075	download
MKU343-026	1.350	34.30	0.920	23.40	0.350	8.89	1.382	35.10	0.888	22.56	0.387	9.83	26	16	135026	download
MKU343-060	1.350	34.30	0.920	23.40	0.350	8.89	1.382	35.10	0.888	22.56	0.387	9.83	60	38	135060	download
MKU343-075	1.350	34.30	0.920	23.40	0.350	8.89	1.382	35.10	0.888	22.56	0.387	9.83	75	47	135075	download
MKU358-026	1.410	35.80	0.880	22.40	0.412	10.50	1.442	36.63	0.848	21.54	0.444	11.28	26	24	141026	download
MKU358-060	1.410	35.80	0.880	22.40	0.412	10.50	1.442	36.63	0.848	21.54	0.444	11.28	60	56	141060	download
MKU358-075	1.410	35.80	0.880	22.40	0.412	10.50	1.442	36.63	0.848	21.54	0.444	11.28	75	70	141075	download
MKU400-026	1.570	39.90	0.950	24.10	0.570	14.50	1.602	40.72	0.918	23.30	0.605	15.37	26	35	157026	download
MKU400-060	1.570	39.90	0.950	24.10	0.570	14.50	1.602	40.72	0.918	23.30	0.605	15.37	60	81	157060	download
MKU400-075	1.570	39.90	0.950	24.10	0.570	14.50	1.602	40.72	0.918	23.30	0.605	15.37	75	101	157075	download
MKU467-026	1.840	46.70	0.950	24.10	0.710	18.00	1.875	47.63	0.918	23.32	0.745	18.92	26	59	184026	download
MKU467-060	1.840	46.70	0.950	24.10	0.710	18.00	1.875	47.63	0.918	23.32	0.745	18.92	60	135	184060	download
MKU467-075	1.840	46.70	0.950	24.10	0.710	18.00	1.875	47.63	0.918	23.32	0.745	18.92	75	169	184075	download
MKU468-026	1.840	46.70	1.130	28.70	0.600	15.20	1.875	47.63	1.098	27.89	0.635	16.13	26	37	185026	download
MKU468-060	1.840	46.70	1.130	28.70	0.600	15.20	1.875	47.63	1.098	27.89	0.635	16.13	60	86	185060	download
MKU468-075	1.840	46.70	1.130	28.70	0.600	15.20	1.875	47.63	1.098	27.89	0.635	16.13	75	107	185075	download
MKU508-026	2.000	50.80	1.250	31.80	0.530	13.50	2.035	51.69	1.218	30.94	0.565	14.35	26	32	200026	download
MKU508-060	2.000	50.80	1.250	31.80	0.530	13.50	2.035	51.69	1.218	30.94	0.565	14.35	60	73	200060	download
MKU508-075	2.000	50.80	1.250	31.80	0.530	13.50	2.035	51.69	1.218	30.94	0.565	14.35	75	91	200075	download
MKU571-026	2.250	57.20	1.039	26.40	0.600	15.20	2.285	58.00	1.007	25.60	0.635	16.10	26	60	226026	download
MKU571-060	2.250	57.20	1.039	26.40	0.600	15.20	2.285	58.00	1.007	25.60	0.635	16.10	60	138	226060	download
MKU571-075	2.250	57.20	1.039	26.40	0.600	15.20	2.285	58.00	1.007	25.60	0.635	16.10	75	175	226075	download
MKU572-026	2.250	57.20	1.400	35.60	0.550	14.00	2.285	58.00	1.368	34.70	0.585	14.86	26	33	225026	download
MKU572-060	2.250	57.20	1.400	35.60	0.550	14.00	2.285	58.00	1.368	34.70	0.585	14.86	60	75	225060	download
MKU572-075	2.250	57.20	1.400	35.60	0.550	14.00	2.285	58.00	1.368	34.70	0.585	14.86	75	94	225075	download
MKU610-026	2.441	62.00	1.283	32.60	0.984	25.00	2.484	63.10	1.235	31.37	1.034	26.27	26	83	250026	download
MKU610-060	2.441	62.00	1.283	32.60	0.984	25.00	2.484	63.10	1.235	31.37	1.034	26.27	60	192	250060	download
MKU610-075	2.441	62.00	1.283	32.60	0.984	25.00	2.484	63.10	1.235	31.37	1.034	26.27	75	240	250075	download
MKU777-026	3.063	77.80	1.938	49.20	0.500	12.70	3.108	78.90	1.898	48.20	0.545	13.84	26	30	300026	download
MKU777-060	3.063	77.80	1.938	49.20	0.500	12.70	3.108	78.90	1.898	48.20	0.545	13.84	60	68	300060	download
MKU777-075	3.063	77.80	1.938	49.20	0.500	12.70	3.108	78.90	1.898	48.20	0.545	13.84	75	85	300075	download
MKU778-026	3.063	77.80	1.938	49.20	0.625	15.90	3.108	78.90	1.898	48.20	0.670	17.02	26	37	301026	download
MKU778-060	3.063	77.80	1.938	49.20	0.625	15.90	3.108	78.90	1.898	48.20	0.670	17.02	60	85	301060	download
MKU778-075	3.063	77.80	1.938	49.20	0.625	15.90	3.108	78.90	1.898	48.20	0.670	17.02	75	107	301075	download
MKU1016-026	4.000	101.60	2.250	57.15	0.650	16.51	4.050	103.12	2.195	55.75	0.700	17.78	26	47	400026	download
MKU1016-060	4.000	101.60	2.250	57.15	0.650	16.51	4.050	103.12	2.195	55.75	0.700	17.78	60	112	400060	download
MKU1016-075	4.000	101.60	2.250	57.15	0.650	16.51	4.050	103.12	2.195	55.75	0.700	17.78	75	137	400075	download
