MKS series
Comprising 85% iron (Fe), 9% silicon (Si) & 6% aluminum (Al), Sendust is an alloy powder material widely used in magnetics applications. It's alternatively called as Kool Mu by Magnetics.
Product Information
Comprising 85% iron (Fe), 9% silicon (Si) & 6% aluminum (Al), Sendust is an alloy powder material widely used in magnetics applications. It's alternatively called as Kool Mu by Magnetics. It features itself with a low loss, relatively high saturation flux density (10,500 Gauss), close to zero magnetostriction as well as a very stable performance at high termperature, or say, no thermal aging.
Applications
power factor corretion choke (PFC choke), pulse transformer, flyback transformer, switching regulator inductor, PV inverter boost choke, output inductor for general industrial power supply, in-line noise filter / EMI filte
Product Advantage
● Good overall performances at low costs

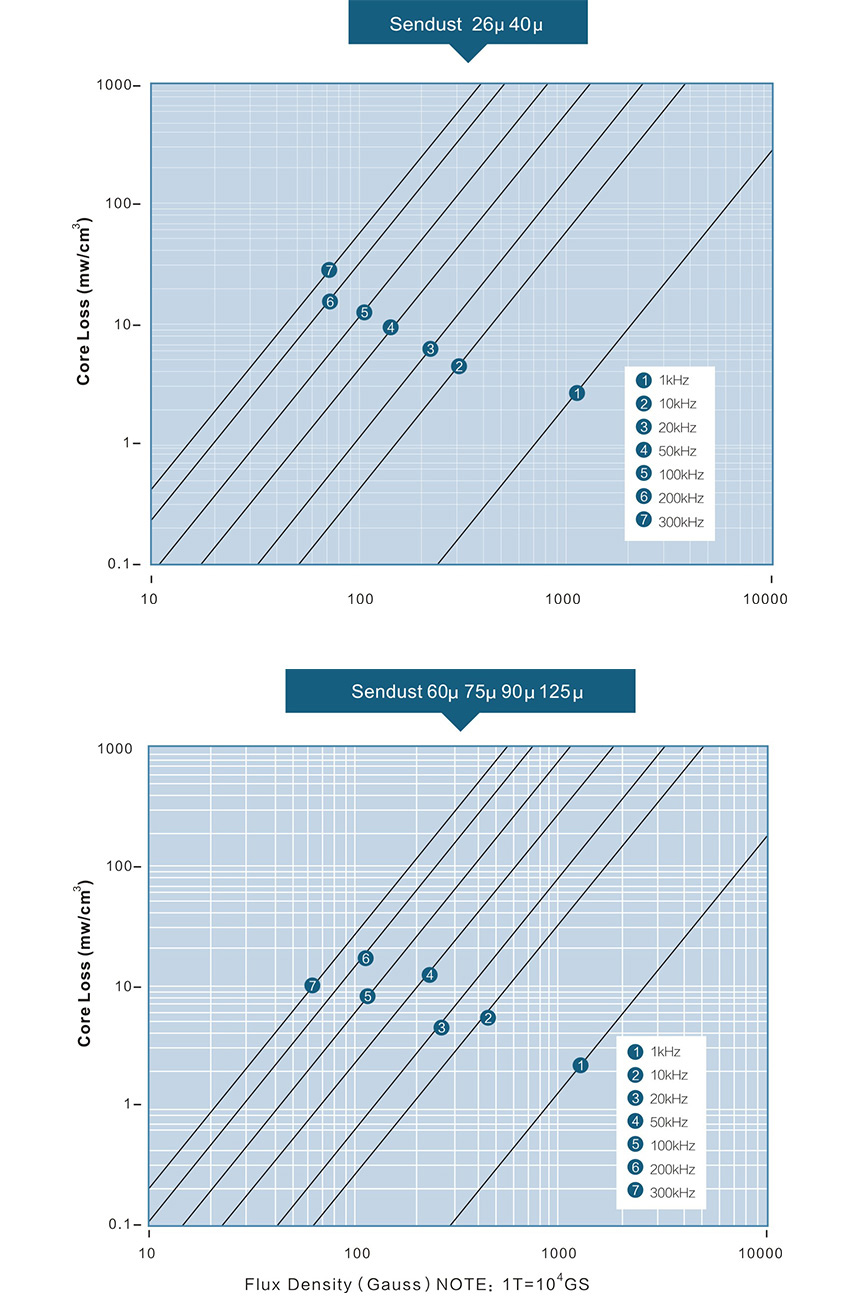

Core Loss Graph

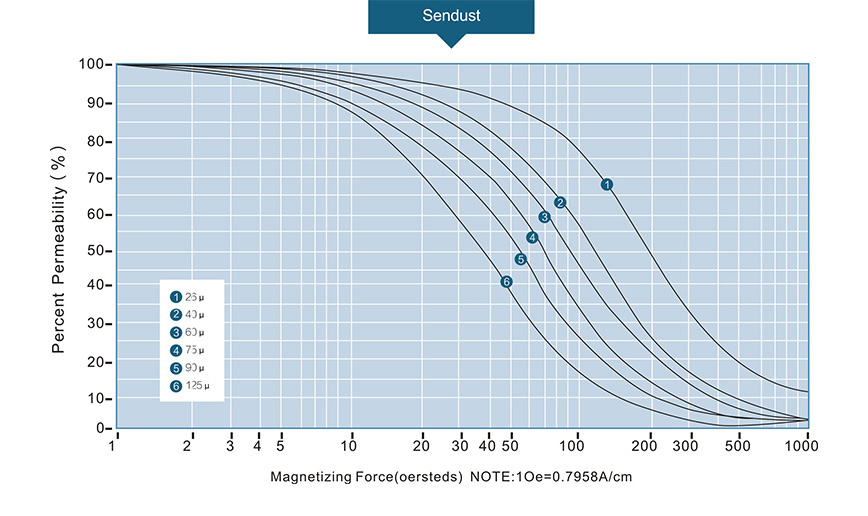

DC Bias Curves
Product List for Sendust Toroidal Cores
|
Mirrack Part No. |
Before Coating | After Coating |
Electromagnetic Property |
Inch Reference No. |
Specification download |
|||||||||||
| OD(MAX) | ID(MIN) | HT(MAX) | OD(MAX) | ID(MIN) | HT(MAX) | Perm. | AL | |||||||||
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | [μ] |
nH/N2 (+/-8%) |
|||
| MKS066-026 | 0.260 | 6.60 | 0.105 | 2.67 | 0.100 | 2.54 | 0.285 | 7.24 | 0.085 | 2.16 | 0.125 | 3.18 | 26 | 11 | 027026 | download |
| MKS066-060 | 0.260 | 6.60 | 0.105 | 2.67 | 0.100 | 2.54 | 0.285 | 7.24 | 0.085 | 2.16 | 0.125 | 3.18 | 60 | 26 | 027060 | download |
| MKS066-075 | 0.260 | 6.60 | 0.105 | 2.67 | 0.100 | 2.54 | 0.285 | 7.24 | 0.085 | 2.16 | 0.125 | 3.18 | 75 | 32 | 027075 | download |
| MKS066-090 | 0.260 | 6.60 | 0.105 | 2.67 | 0.100 | 2.54 | 0.285 | 7.24 | 0.085 | 2.16 | 0.125 | 3.18 | 90 | 39 | 027090 | download |
| MKS066-125 | 0.260 | 6.60 | 0.105 | 2.67 | 0.100 | 2.54 | 0.285 | 7.24 | 0.085 | 2.16 | 0.125 | 3.18 | 125 | 54 | 027125 | download |
| MKS078-026 | 0.310 | 7.87 | 0.156 | 3.96 | 0.125 | 3.18 | 0.335 | 8.51 | 0.135 | 3.43 | 0.150 | 3.81 | 26 | 11 | 031026 | download |
| MKS078-060 | 0.310 | 7.87 | 0.156 | 3.96 | 0.125 | 3.18 | 0.335 | 8.51 | 0.135 | 3.43 | 0.150 | 3.81 | 60 | 25 | 031060 | download |
| MKS078-075 | 0.310 | 7.87 | 0.156 | 3.96 | 0.125 | 3.18 | 0.335 | 8.51 | 0.135 | 3.43 | 0.150 | 3.81 | 75 | 31 | 031075 | download |
| MKS078-090 | 0.310 | 7.87 | 0.156 | 3.96 | 0.125 | 3.18 | 0.335 | 8.51 | 0.135 | 3.43 | 0.150 | 3.81 | 90 | 37 | 031090 | download |
| MKS078-125 | 0.310 | 7.87 | 0.156 | 3.96 | 0.125 | 3.18 | 0.335 | 8.51 | 0.135 | 3.43 | 0.150 | 3.81 | 125 | 52 | 031125 | download |
| MKS096-026 | 0.380 | 9.65 | 0.188 | 4.78 | 0.125 | 3.18 | 0.405 | 10.29 | 0.168 | 4.27 | 0.150 | 3.81 | 26 | 11 | 039026 | download |
| MKS096-060 | 0.380 | 9.65 | 0.188 | 4.78 | 0.125 | 3.18 | 0.405 | 10.29 | 0.168 | 4.27 | 0.150 | 3.81 | 60 | 25 | 039060 | download |
| MKS096-075 | 0.380 | 9.65 | 0.188 | 4.78 | 0.125 | 3.18 | 0.405 | 10.29 | 0.168 | 4.27 | 0.150 | 3.81 | 75 | 32 | 039075 | download |
| MKS096-090 | 0.380 | 9.65 | 0.188 | 4.78 | 0.125 | 3.18 | 0.405 | 10.29 | 0.168 | 4.27 | 0.150 | 3.81 | 90 | 38 | 039090 | download |
| MKS096-125 | 0.380 | 9.65 | 0.188 | 4.78 | 0.125 | 3.18 | 0.405 | 10.29 | 0.168 | 4.27 | 0.150 | 3.81 | 125 | 53 | 039125 | download |
| MKS097-026 | 0.380 | 9.65 | 0.188 | 4.78 | 0.156 | 3.96 | 0.405 | 10.29 | 0.168 | 4.27 | 0.181 | 4.60 | 26 | 14 | 038026 | download |
| MKS097-060 | 0.380 | 9.65 | 0.188 | 4.78 | 0.156 | 3.96 | 0.405 | 10.29 | 0.168 | 4.27 | 0.181 | 4.60 | 60 | 32 | 038060 | download |
| MKS097-075 | 0.380 | 9.65 | 0.188 | 4.78 | 0.156 | 3.96 | 0.405 | 10.29 | 0.168 | 4.27 | 0.181 | 4.60 | 75 | 40 | 038075 | download |
| MKS097-090 | 0.380 | 9.65 | 0.188 | 4.78 | 0.156 | 3.96 | 0.405 | 10.29 | 0.168 | 4.27 | 0.181 | 4.60 | 90 | 48 | 038090 | download |
| MKS097-125 | 0.380 | 9.65 | 0.188 | 4.78 | 0.156 | 3.96 | 0.405 | 10.29 | 0.168 | 4.27 | 0.181 | 4.60 | 125 | 66 | 038125 | download |
| MKS102-026 | 0.400 | 10.20 | 0.200 | 5.08 | 0.156 | 3.96 | 0.425 | 10.80 | 0.180 | 4.57 | 0.181 | 4.60 | 26 | 14 | 040026 | download |
| MKS102-060 | 0.400 | 10.20 | 0.200 | 5.08 | 0.156 | 3.96 | 0.425 | 10.80 | 0.180 | 4.57 | 0.181 | 4.60 | 60 | 32 | 040060 | download |
| MKS102-075 | 0.400 | 10.20 | 0.200 | 5.08 | 0.156 | 3.96 | 0.425 | 10.80 | 0.180 | 4.57 | 0.181 | 4.60 | 75 | 40 | 040075 | download |
| MKS102-090 | 0.400 | 10.20 | 0.200 | 5.08 | 0.156 | 3.96 | 0.425 | 10.80 | 0.180 | 4.57 | 0.181 | 4.60 | 90 | 48 | 040090 | download |
| MKS102-125 | 0.400 | 10.20 | 0.200 | 5.08 | 0.156 | 3.96 | 0.425 | 10.80 | 0.180 | 4.57 | 0.181 | 4.60 | 125 | 66 | 040125 | download |
| MKS112-026 | 0.440 | 11.20 | 0.250 | 6.35 | 0.156 | 3.96 | 0.468 | 11.89 | 0.232 | 5.89 | 0.186 | 4.72 | 26 | 11 | 044026 | download |
| MKS112-060 | 0.440 | 11.20 | 0.250 | 6.35 | 0.156 | 3.96 | 0.468 | 11.89 | 0.232 | 5.89 | 0.186 | 4.72 | 60 | 26 | 044060 | download |
| MKS112-075 | 0.440 | 11.20 | 0.250 | 6.35 | 0.156 | 3.96 | 0.468 | 11.89 | 0.232 | 5.89 | 0.186 | 4.72 | 75 | 32 | 044075 | download |
| MKS112-090 | 0.440 | 11.20 | 0.250 | 6.35 | 0.156 | 3.96 | 0.468 | 11.89 | 0.232 | 5.89 | 0.186 | 4.72 | 90 | 38 | 044090 | download |
| MKS112-125 | 0.440 | 11.20 | 0.250 | 6.35 | 0.156 | 3.96 | 0.468 | 11.89 | 0.232 | 5.89 | 0.186 | 4.72 | 125 | 53 | 044125 | download |
| MKS127-026 | 0.500 | 12.70 | 0.300 | 7.62 | 0.187 | 4.75 | 0.530 | 13.46 | 0.275 | 6.99 | 0.217 | 5.51 | 26 | 12 | 050026 | download |
| MKS127-060 | 0.500 | 12.70 | 0.300 | 7.62 | 0.187 | 4.75 | 0.530 | 13.46 | 0.275 | 6.99 | 0.217 | 5.51 | 60 | 27 | 050060 | download |
| MKS127-075 | 0.500 | 12.70 | 0.300 | 7.62 | 0.187 | 4.75 | 0.530 | 13.46 | 0.275 | 6.99 | 0.217 | 5.51 | 75 | 34 | 050075 | download |
| MKS127-090 | 0.500 | 12.70 | 0.300 | 7.62 | 0.187 | 4.75 | 0.530 | 13.46 | 0.275 | 6.99 | 0.217 | 5.51 | 90 | 40 | 050090 | download |
| MKS127-125 | 0.500 | 12.70 | 0.300 | 7.62 | 0.187 | 4.75 | 0.530 | 13.46 | 0.275 | 6.99 | 0.217 | 5.51 | 125 | 56 | 050125 | download |
| MKS166-026 | 0.650 | 16.50 | 0.400 | 10.20 | 0.250 | 6.35 | 0.680 | 17.40 | 0.375 | 9.53 | 0.286 | 7.11 | 26 | 15 | 065026 | download |
| MKS166-060 | 0.650 | 16.50 | 0.400 | 10.20 | 0.250 | 6.35 | 0.680 | 17.40 | 0.375 | 9.53 | 0.286 | 7.11 | 60 | 35 | 065060 | download |
| MKS166-075 | 0.650 | 16.50 | 0.400 | 10.20 | 0.250 | 6.35 | 0.680 | 17.40 | 0.375 | 9.53 | 0.286 | 7.11 | 75 | 43 | 065075 | download |
| MKS166-090 | 0.650 | 16.50 | 0.400 | 10.20 | 0.250 | 6.35 | 0.680 | 17.40 | 0.375 | 9.53 | 0.286 | 7.11 | 90 | 52 | 065090 | download |
| MKS166-125 | 0.650 | 16.50 | 0.400 | 10.20 | 0.250 | 6.35 | 0.680 | 17.40 | 0.375 | 9.53 | 0.286 | 7.11 | 125 | 72 | 065125 | download |
| MKS172-026 | 0.680 | 17.30 | 0.380 | 9.65 | 0.250 | 6.35 | 0.710 | 18.03 | 0.355 | 9.02 | 0.280 | 7.11 | 26 | 19 | 068026 | download |
| MKS172-060 | 0.680 | 17.30 | 0.380 | 9.65 | 0.250 | 6.35 | 0.710 | 18.03 | 0.355 | 9.02 | 0.280 | 7.11 | 60 | 43 | 068060 | download |
| MKS172-075 | 0.680 | 17.30 | 0.380 | 9.65 | 0.250 | 6.35 | 0.710 | 18.03 | 0.355 | 9.02 | 0.280 | 7.11 | 75 | 53 | 068075 | download |
| MKS172-090 | 0.680 | 17.30 | 0.380 | 9.65 | 0.250 | 6.35 | 0.710 | 18.03 | 0.355 | 9.02 | 0.280 | 7.11 | 90 | 64 | 068090 | download |
| MKS172-125 | 0.680 | 17.30 | 0.380 | 9.65 | 0.250 | 6.35 | 0.710 | 18.03 | 0.355 | 9.02 | 0.280 | 7.11 | 125 | 89 | 068125 | download |
| MKS203-026 | 0.800 | 20.30 | 0.500 | 12.70 | 0.250 | 6.35 | 0.830 | 21.10 | 0.475 | 12.07 | 0.280 | 7.11 | 26 | 14 | 080026 | download |
| MKS203-040 | 0.800 | 20.30 | 0.500 | 12.70 | 0.250 | 6.35 | 0.830 | 21.10 | 0.475 | 12.07 | 0.280 | 7.11 | 40 | 21 | 080040 | download |
| MKS203-060 | 0.800 | 20.30 | 0.500 | 12.70 | 0.250 | 6.35 | 0.830 | 21.10 | 0.475 | 12.07 | 0.280 | 7.11 | 60 | 32 | 080060 | download |
| MKS203-075 | 0.800 | 20.30 | 0.500 | 12.70 | 0.250 | 6.35 | 0.830 | 21.10 | 0.475 | 12.07 | 0.280 | 7.11 | 75 | 41 | 080075 | download |
| MKS203-090 | 0.800 | 20.30 | 0.500 | 12.70 | 0.250 | 6.35 | 0.830 | 21.10 | 0.475 | 12.07 | 0.280 | 7.11 | 90 | 49 | 080090 | download |
| MKS203-125 | 0.800 | 20.30 | 0.500 | 12.70 | 0.250 | 6.35 | 0.830 | 21.10 | 0.475 | 12.07 | 0.280 | 7.11 | 125 | 68 | 080125 | download |
| MKS229-026 | 0.900 | 22.90 | 0.550 | 14.70 | 0.300 | 7.62 | 0.930 | 23.62 | 0.527 | 13.3 | 0.330 | 8.38 | 26 | 19 | 090026 | download |
| MKS229-040 | 0.900 | 22.90 | 0.550 | 14.70 | 0.300 | 7.62 | 0.930 | 23.62 | 0.527 | 13.3 | 0.330 | 8.38 | 40 | 29 | 090040 | download |
| MKS229-060 | 0.900 | 22.90 | 0.550 | 14.70 | 0.300 | 7.62 | 0.930 | 23.62 | 0.527 | 13.3 | 0.330 | 8.38 | 60 | 43 | 090060 | download |
| MKS229-075 | 0.900 | 22.90 | 0.550 | 14.70 | 0.300 | 7.62 | 0.930 | 23.62 | 0.527 | 13.3 | 0.330 | 8.38 | 75 | 54 | 090075 | download |
| MKS229-090 | 0.900 | 22.90 | 0.550 | 14.70 | 0.300 | 7.62 | 0.930 | 23.62 | 0.527 | 13.3 | 0.330 | 8.38 | 90 | 65 | 090090 | download |
| MKS229-125 | 0.900 | 22.90 | 0.550 | 14.70 | 0.300 | 7.62 | 0.930 | 23.62 | 0.527 | 13.3 | 0.330 | 8.38 | 125 | 90 | 090125 | download |
| MKS234-026 | 0.928 | 23.60 | 0.567 | 14.40 | 0.350 | 8.89 | 0.956 | 24.30 | 0.542 | 13.77 | 0.382 | 9.7 | 26 | 22 | 092026 | download |
| MKS234-060 | 0.928 | 23.60 | 0.567 | 14.40 | 0.350 | 8.89 | 0.956 | 24.30 | 0.542 | 13.77 | 0.382 | 9.7 | 60 | 51 | 092060 | download |
| MKS234-075 | 0.928 | 23.60 | 0.567 | 14.40 | 0.350 | 8.89 | 0.956 | 24.30 | 0.542 | 13.77 | 0.382 | 9.7 | 75 | 63 | 092075 | download |
| MKS234-090 | 0.928 | 23.60 | 0.567 | 14.40 | 0.350 | 8.89 | 0.956 | 24.30 | 0.542 | 13.77 | 0.382 | 9.7 | 90 | 76 | 092090 | download |
| MKS234-125 | 0.928 | 23.60 | 0.567 | 14.40 | 0.350 | 8.89 | 0.956 | 24.30 | 0.542 | 13.77 | 0.382 | 9.7 | 125 | 105 | 092125 | download |
| MKS270-026 | 1.060 | 26.90 | 0.580 | 14.70 | 0.440 | 11.20 | 1.090 | 27.70 | 0.555 | 14.10 | 0.472 | 11.99 | 26 | 32 | 106026 | download |
| MKS270-040 | 1.060 | 26.90 | 0.580 | 14.70 | 0.440 | 11.20 | 1.090 | 27.70 | 0.555 | 14.10 | 0.472 | 11.99 | 40 | 50 | 106040 | download |
| MKS270-060 | 1.060 | 26.90 | 0.580 | 14.70 | 0.440 | 11.20 | 1.090 | 27.70 | 0.555 | 14.10 | 0.472 | 11.99 | 60 | 75 | 106060 | download |
| MKS270-075 | 1.060 | 26.90 | 0.580 | 14.70 | 0.440 | 11.20 | 1.090 | 27.70 | 0.555 | 14.10 | 0.472 | 11.99 | 75 | 94 | 106075 | download |
| MKS270-090 | 1.060 | 26.90 | 0.580 | 14.70 | 0.440 | 11.20 | 1.090 | 27.70 | 0.555 | 14.10 | 0.472 | 11.99 | 90 | 113 | 106090 | download |
| MKS270-125 | 1.060 | 26.90 | 0.580 | 14.70 | 0.440 | 11.20 | 1.090 | 27.70 | 0.555 | 14.10 | 0.472 | 11.99 | 125 | 157 | 106125 | download |
| MKS270H-026 | 1.060 | 26.90 | 0.580 | 14.70 | 0.340 | 8.64 | 1.090 | 27.70 | 0.555 | 14.10 | 0.372 | 9.45 | 26 | 22 | 107026 | download |
| MKS270H-060 | 1.060 | 26.90 | 0.580 | 14.70 | 0.340 | 8.64 | 1.090 | 27.70 | 0.555 | 14.10 | 0.372 | 9.45 | 60 | 59 | 107060 | download |
| MKS270H-075 | 1.060 | 26.90 | 0.580 | 14.70 | 0.340 | 8.64 | 1.090 | 27.70 | 0.555 | 14.10 | 0.372 | 9.45 | 75 | 74 | 107075 | download |
| MKS270H-090 | 1.060 | 26.90 | 0.580 | 14.70 | 0.340 | 8.64 | 1.090 | 27.70 | 0.555 | 14.10 | 0.372 | 9.45 | 90 | 89 | 107090 | download |
| MKS270H-125 | 1.060 | 26.90 | 0.580 | 14.70 | 0.340 | 8.64 | 1.090 | 27.70 | 0.555 | 14.10 | 0.372 | 9.45 | 125 | 123 | 107125 | download |
| MKS330-026 | 1.300 | 33.00 | 0.785 | 19.90 | 0.420 | 10.70 | 1.332 | 33.83 | 0.760 | 19.30 | 0.457 | 11.61 | 26 | 28 | 130026 | download |
| MKS330-040 | 1.300 | 33.00 | 0.785 | 19.90 | 0.420 | 10.70 | 1.332 | 33.83 | 0.760 | 19.30 | 0.457 | 11.61 | 40 | 41 | 130040 | download |
| MKS330-060 | 1.300 | 33.00 | 0.785 | 19.90 | 0.420 | 10.70 | 1.332 | 33.83 | 0.760 | 19.30 | 0.457 | 11.61 | 60 | 61 | 130060 | download |
| MKS330-075 | 1.300 | 33.00 | 0.785 | 19.90 | 0.420 | 10.70 | 1.332 | 33.83 | 0.760 | 19.30 | 0.457 | 11.61 | 75 | 76 | 130075 | download |
| MKS330-090 | 1.300 | 33.00 | 0.785 | 19.90 | 0.420 | 10.70 | 1.332 | 33.83 | 0.760 | 19.30 | 0.457 | 11.61 | 90 | 91 | 130090 | download |
| MKS330-125 | 1.300 | 33.00 | 0.785 | 19.90 | 0.420 | 10.70 | 1.332 | 33.83 | 0.760 | 19.30 | 0.457 | 11.61 | 125 | 127 | 130125 | download |
| MKS330H-026 | 1.300 | 33.00 | 0.785 | 19.90 | 0.345 | 8.76 | 1.332 | 33.83 | 0.760 | 19.30 | 0.382 | 9.70 | 26 | 22 | 131026 | download |
| MKS330H-060 | 1.300 | 33.00 | 0.785 | 19.90 | 0.345 | 8.76 | 1.332 | 33.83 | 0.760 | 19.30 | 0.382 | 9.70 | 60 | 51 | 131060 | download |
| MKS330H-075 | 1.300 | 33.00 | 0.785 | 19.90 | 0.345 | 8.76 | 1.332 | 33.83 | 0.760 | 19.30 | 0.382 | 9.70 | 75 | 64 | 131075 | download |
| MKS330H-090 | 1.300 | 33.00 | 0.785 | 19.90 | 0.345 | 8.76 | 1.332 | 33.83 | 0.760 | 19.30 | 0.382 | 9.70 | 90 | 76.5 | 131090 | download |
| MKS330H-125 | 1.300 | 33.00 | 0.785 | 19.90 | 0.345 | 8.76 | 1.332 | 33.83 | 0.760 | 19.30 | 0.382 | 9.70 | 125 | 109 | 131125 | download |
| MKS343-026 | 1.350 | 34.30 | 0.920 | 23.40 | 0.350 | 8.89 | 1.382 | 35.10 | 0.888 | 22.56 | 0.387 | 9.83 | 26 | 16 | 135026 | download |
| MKS343-040 | 1.350 | 34.30 | 0.920 | 23.40 | 0.350 | 8.89 | 1.382 | 35.10 | 0.888 | 22.56 | 0.387 | 9.83 | 40 | 25 | 135040 | download |
| MKS343-060 | 1.350 | 34.30 | 0.920 | 23.40 | 0.350 | 8.89 | 1.382 | 35.10 | 0.888 | 22.56 | 0.387 | 9.83 | 60 | 38 | 135060 | download |
| MKS343-075 | 1.350 | 34.30 | 0.920 | 23.40 | 0.350 | 8.89 | 1.382 | 35.10 | 0.888 | 22.56 | 0.387 | 9.83 | 75 | 47 | 135075 | download |
| MKS343-090 | 1.350 | 34.30 | 0.920 | 23.40 | 0.350 | 8.89 | 1.382 | 35.10 | 0.888 | 22.56 | 0.387 | 9.83 | 90 | 57 | 135090 | download |
| MKS343-125 | 1.350 | 34.30 | 0.920 | 23.40 | 0.350 | 8.89 | 1.382 | 35.10 | 0.888 | 22.56 | 0.387 | 9.83 | 125 | 79 | 135125 | download |
| MKS358-026 | 1.410 | 35.80 | 0.880 | 22.40 | 0.412 | 10.50 | 1.442 | 36.63 | 0.848 | 21.54 | 0.444 | 11.28 | 26 | 24 | 141026 | download |
| MKS358-040 | 1.410 | 35.80 | 0.880 | 22.40 | 0.412 | 10.50 | 1.442 | 36.63 | 0.848 | 21.54 | 0.444 | 11.28 | 40 | 37 | 141040 | download |
| MKS358-060 | 1.410 | 35.80 | 0.880 | 22.40 | 0.412 | 10.50 | 1.442 | 36.63 | 0.848 | 21.54 | 0.444 | 11.28 | 60 | 56 | 141060 | download |
| MKS358-075 | 1.410 | 35.80 | 0.880 | 22.40 | 0.412 | 10.50 | 1.442 | 36.63 | 0.848 | 21.54 | 0.444 | 11.28 | 75 | 70 | 141075 | download |
| MKS358-090 | 1.410 | 35.80 | 0.880 | 22.40 | 0.412 | 10.50 | 1.442 | 36.63 | 0.848 | 21.54 | 0.444 | 11.28 | 90 | 84 | 141090 | download |
| MKS358-125 | 1.410 | 35.80 | 0.880 | 22.40 | 0.412 | 10.50 | 1.442 | 36.63 | 0.848 | 21.54 | 0.444 | 11.28 | 125 | 117 | 141125 | download |
| MKS400-026 | 1.570 | 39.90 | 0.950 | 24.10 | 0.570 | 14.50 | 1.602 | 40.72 | 0.918 | 23.30 | 0.605 | 15.37 | 26 | 35 | 157026 | download |
| MKS400-040 | 1.570 | 39.90 | 0.950 | 24.10 | 0.570 | 14.50 | 1.602 | 40.72 | 0.918 | 23.30 | 0.605 | 15.37 | 40 | 54 | 157040 | download |
| MKS400-060 | 1.570 | 39.90 | 0.950 | 24.10 | 0.570 | 14.50 | 1.602 | 40.72 | 0.918 | 23.30 | 0.605 | 15.37 | 60 | 81 | 157060 | download |
| MKS400-075 | 1.570 | 39.90 | 0.950 | 24.10 | 0.570 | 14.50 | 1.602 | 40.72 | 0.918 | 23.30 | 0.605 | 15.37 | 75 | 101 | 157075 | download |
| MKS400-090 | 1.570 | 39.90 | 0.950 | 24.10 | 0.570 | 14.50 | 1.602 | 40.72 | 0.918 | 23.30 | 0.605 | 15.37 | 90 | 121 | 157090 | download |
| MKS400-125 | 1.570 | 39.90 | 0.950 | 24.10 | 0.570 | 14.50 | 1.602 | 40.72 | 0.918 | 23.30 | 0.605 | 15.37 | 125 | 168 | 157125 | download |
| MKS467-026 | 1.840 | 46.70 | 0.950 | 24.10 | 0.710 | 18.00 | 1.875 | 47.63 | 0.918 | 23.32 | 0.745 | 18.92 | 26 | 59 | 184026 | download |
| MKS467-060 | 1.840 | 46.70 | 0.950 | 24.10 | 0.710 | 18.00 | 1.875 | 47.63 | 0.918 | 23.32 | 0.745 | 18.92 | 60 | 135 | 184060 | download |
| MKS467-075 | 1.840 | 46.70 | 0.950 | 24.10 | 0.710 | 18.00 | 1.875 | 47.63 | 0.918 | 23.32 | 0.745 | 18.92 | 75 | 169 | 184075 | download |
| MKS467-090 | 1.840 | 46.70 | 0.950 | 24.10 | 0.710 | 18.00 | 1.875 | 47.63 | 0.918 | 23.32 | 0.745 | 18.92 | 90 | 202 | 184090 | download |
| MKS467-125 | 1.840 | 46.70 | 0.950 | 24.10 | 0.710 | 18.00 | 1.875 | 47.63 | 0.918 | 23.32 | 0.745 | 18.92 | 125 | 281 | 184125 | download |
| MKS468-026 | 1.840 | 46.70 | 1.130 | 28.70 | 0.600 | 15.20 | 1.875 | 47.63 | 1.098 | 27.89 | 0.635 | 16.13 | 26 | 37 | 185026 | download |
| MKS468-040 | 1.840 | 46.70 | 1.130 | 28.70 | 0.600 | 15.20 | 1.875 | 47.63 | 1.098 | 27.89 | 0.635 | 16.13 | 40 | 57 | 185040 | download |
| MKS468-060 | 1.840 | 46.70 | 1.130 | 28.70 | 0.600 | 15.20 | 1.875 | 47.63 | 1.098 | 27.89 | 0.635 | 16.13 | 60 | 86 | 185060 | download |
| MKS468-075 | 1.840 | 46.70 | 1.130 | 28.70 | 0.600 | 15.20 | 1.875 | 47.63 | 1.098 | 27.89 | 0.635 | 16.13 | 75 | 107 | 185075 | download |
| MKS468-090 | 1.840 | 46.70 | 1.130 | 28.70 | 0.600 | 15.20 | 1.875 | 47.63 | 1.098 | 27.89 | 0.635 | 16.13 | 90 | 128 | 185090 | download |
| MKS468-125 | 1.840 | 46.70 | 1.130 | 28.70 | 0.600 | 15.20 | 1.875 | 47.63 | 1.098 | 27.89 | 0.635 | 16.13 | 125 | 178 | 185125 | download |
| MKS508-026 | 2.000 | 50.80 | 1.250 | 31.80 | 0.530 | 13.50 | 2.035 | 51.69 | 1.218 | 30.94 | 0.565 | 14.35 | 26 | 32 | 200026 | download |
| MKS508-040 | 2.000 | 50.80 | 1.250 | 31.80 | 0.530 | 13.50 | 2.035 | 51.69 | 1.218 | 30.94 | 0.565 | 14.35 | 40 | 49 | 200040 | download |
| MKS508-060 | 2.000 | 50.80 | 1.250 | 31.80 | 0.530 | 13.50 | 2.035 | 51.69 | 1.218 | 30.94 | 0.565 | 14.35 | 60 | 73 | 200060 | download |
| MKS508-075 | 2.000 | 50.80 | 1.250 | 31.80 | 0.530 | 13.50 | 2.035 | 51.69 | 1.218 | 30.94 | 0.565 | 14.35 | 75 | 91 | 200075 | download |
| MKS508-090 | 2.000 | 50.80 | 1.250 | 31.80 | 0.530 | 13.50 | 2.035 | 51.69 | 1.218 | 30.94 | 0.565 | 14.35 | 90 | 109 | 200090 | download |
| MKS508-125 | 2.000 | 50.80 | 1.250 | 31.80 | 0.530 | 13.50 | 2.035 | 51.69 | 1.218 | 30.94 | 0.565 | 14.35 | 125 | 152 | 200125 | download |
| MKS571-026 | 2.250 | 57.20 | 1.039 | 26.40 | 0.600 | 15.20 | 2.285 | 58.00 | 1.007 | 25.60 | 0.635 | 16.10 | 26 | 60 | 226026 | download |
| MKS571-040 | 2.250 | 57.20 | 1.039 | 26.40 | 0.600 | 15.20 | 2.285 | 58.00 | 1.007 | 25.60 | 0.635 | 16.10 | 40 | 92 | 226040 | download |
| MKS571-060 | 2.250 | 57.20 | 1.039 | 26.40 | 0.600 | 15.20 | 2.285 | 58.00 | 1.007 | 25.60 | 0.635 | 16.10 | 60 | 138 | 226060 | download |
| MKS571-075 | 2.250 | 57.20 | 1.039 | 26.40 | 0.600 | 15.20 | 2.285 | 58.00 | 1.007 | 25.60 | 0.635 | 16.10 | 75 | 175 | 226075 | download |
| MKS571-090 | 2.250 | 57.20 | 1.039 | 26.40 | 0.600 | 15.20 | 2.285 | 58.00 | 1.007 | 25.60 | 0.635 | 16.10 | 90 | 207 | 226090 | download |
| MKS571-125 | 2.250 | 57.20 | 1.039 | 26.40 | 0.600 | 15.20 | 2.285 | 58.00 | 1.007 | 25.60 | 0.635 | 16.10 | 125 | 287 | 226125 | download |
| MKS572-026 | 2.250 | 57.20 | 1.400 | 35.60 | 0.550 | 14.00 | 2.285 | 58.00 | 1.368 | 34.70 | 0.585 | 14.86 | 26 | 33 | 225026 | download |
| MKS572-040 | 2.250 | 57.20 | 1.400 | 35.60 | 0.550 | 14.00 | 2.285 | 58.00 | 1.368 | 34.70 | 0.585 | 14.86 | 40 | 50 | 225040 | download |
| MKS572-060 | 2.250 | 57.20 | 1.400 | 35.60 | 0.550 | 14.00 | 2.285 | 58.00 | 1.368 | 34.70 | 0.585 | 14.86 | 60 | 75 | 225060 | download |
| MKS572-075 | 2.250 | 57.20 | 1.400 | 35.60 | 0.550 | 14.00 | 2.285 | 58.00 | 1.368 | 34.70 | 0.585 | 14.86 | 75 | 94 | 225075 | download |
| MKS572-090 | 2.250 | 57.20 | 1.400 | 35.60 | 0.550 | 14.00 | 2.285 | 58.00 | 1.368 | 34.70 | 0.585 | 14.86 | 90 | 112 | 225090 | download |
| MKS572-125 | 2.250 | 57.20 | 1.400 | 35.60 | 0.550 | 14.00 | 2.285 | 58.00 | 1.368 | 34.70 | 0.585 | 14.86 | 125 | 156 | 225125 | download |
| MKS610-026 | 2.441 | 62.00 | 1.283 | 32.60 | 0.984 | 25.00 | 2.484 | 63.10 | 1.235 | 31.37 | 1.034 | 26.27 | 26 | 83 | 250026 | download |
| MKS610-060 | 2.441 | 62.00 | 1.283 | 32.60 | 0.984 | 25.00 | 2.484 | 63.10 | 1.235 | 31.37 | 1.034 | 26.27 | 60 | 192 | 250060 | download |
| MKS610-075 | 2.441 | 62.00 | 1.283 | 32.60 | 0.984 | 25.00 | 2.484 | 63.10 | 1.235 | 31.37 | 1.034 | 26.27 | 75 | 240 | 250075 | download |
| MKS610-090 | 2.441 | 62.00 | 1.283 | 32.60 | 0.984 | 25.00 | 2.484 | 63.10 | 1.235 | 31.37 | 1.034 | 26.27 | 90 | 288 | 250090 | download |
| MKS610-125 | 2.441 | 62.00 | 1.283 | 32.60 | 0.984 | 25.00 | 2.484 | 63.10 | 1.235 | 31.37 | 1.034 | 26.27 | 125 | 400 | 250125 | download |
| MKS777-026 | 3.063 | 77.80 | 1.938 | 49.20 | 0.500 | 12.70 | 3.108 | 78.90 | 1.898 | 48.20 | 0.545 | 13.84 | 26 | 30 | 300026 | download |
| MKS777-060 | 3.063 | 77.80 | 1.938 | 49.20 | 0.500 | 12.70 | 3.108 | 78.90 | 1.898 | 48.20 | 0.545 | 13.84 | 60 | 68 | 300060 | download |
| MKS777-075 | 3.063 | 77.80 | 1.938 | 49.20 | 0.500 | 12.70 | 3.108 | 78.90 | 1.898 | 48.20 | 0.545 | 13.84 | 75 | 85 | 300075 | download |
| MKS777-090 | 3.063 | 77.80 | 1.938 | 49.20 | 0.500 | 12.70 | 3.108 | 78.90 | 1.898 | 48.20 | 0.545 | 13.84 | 90 | 102 | 300090 | download |
| MKS777-125 | 3.063 | 77.80 | 1.938 | 49.20 | 0.500 | 12.70 | 3.108 | 78.90 | 1.898 | 48.20 | 0.545 | 13.84 | 125 | 142 | 300125 | download |
| MKS778-026 | 3.063 | 77.80 | 1.938 | 49.20 | 0.625 | 15.90 | 3.108 | 78.90 | 1.898 | 48.20 | 0.670 | 17.02 | 26 | 37 | 301026 | download |
| MKS778-060 | 3.063 | 77.80 | 1.938 | 49.20 | 0.625 | 15.90 | 3.108 | 78.90 | 1.898 | 48.20 | 0.670 | 17.02 | 60 | 85 | 301060 | download |
| MKS778-075 | 3.063 | 77.80 | 1.938 | 49.20 | 0.625 | 15.90 | 3.108 | 78.90 | 1.898 | 48.20 | 0.670 | 17.02 | 75 | 107 | 301075 | download |
| MKS778-090 | 3.063 | 77.80 | 1.938 | 49.20 | 0.625 | 15.90 | 3.108 | 78.90 | 1.898 | 48.20 | 0.670 | 17.02 | 90 | 128 | 301090 | download |
| MKS778-125 | 3.063 | 77.80 | 1.938 | 49.20 | 0.625 | 15.90 | 3.108 | 78.90 | 1.898 | 48.20 | 0.670 | 17.02 | 125 | 178 | 301125 | download |
| MKS1016-026 | 4.000 | 101.60 | 2.250 | 57.15 | 0.650 | 16.51 | 4.050 | 103.12 | 2.195 | 55.75 | 0.700 | 17.78 | 26 | 47 | 400026 | download |
| MKS1016-060 | 4.000 | 101.60 | 2.250 | 57.15 | 0.650 | 16.51 | 4.050 | 103.12 | 2.195 | 55.75 | 0.700 | 17.78 | 60 | 112 | 400060 | download |
| MKS1016-075 | 4.000 | 101.60 | 2.250 | 57.15 | 0.650 | 16.51 | 4.050 | 103.12 | 2.195 | 55.75 | 0.700 | 17.78 | 75 | 137 | 400075 | download |
| MKS1016-090 | 4.000 | 101.60 | 2.250 | 57.15 | 0.650 | 16.51 | 4.050 | 103.12 | 2.195 | 55.75 | 0.700 | 17.78 | 90 | 164 | 400090 | download |
| MKS1016-125 | 4.000 | 101.60 | 2.250 | 57.15 | 0.650 | 16.51 | 4.050 | 103.12 | 2.195 | 55.75 | 0.700 | 17.78 | 125 | 228 | 400125 | download |
